Zero Tolerance for On-Site Errors
When initiating the construction of a loading bay area, meticulous planning of the sequential operations is essential. This process necessitates the coordinated and sequential integration of various components, much like a precisely conducted symphony. The site manager assumes the role of conductor, dictating the tempo of operations.
Construction sites are subject to numerous unpredictable factors, including weather conditions and personnel constraints. Skilled labour is increasingly scarce, rendering the multi-skilled workforce of previous eras obsolete. Contemporary roles are highly specialized, demanding stringent coordination to maintain project flow.
A critical phase in loading bay construction involves preparing the recess for the dock leveller.

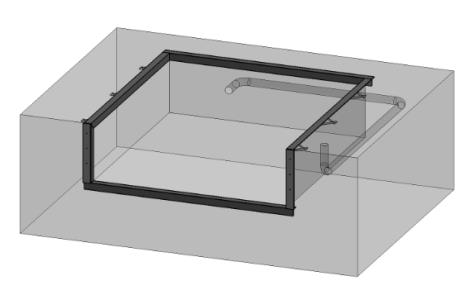

The conventional method entails constructing formwork to contain concrete and secure a steel profile, subsequently accommodating the loading bay leveller. This typically precedes the on-site delivery of levellers, which vary in dimensions between manufacturers. Consequently, early supplier selection is imperative to ensure precise recess dimensions.
In industrial sectors, millimetre tolerances are standard, contrasting with the centimetre tolerances common in construction. Errors necessitate concrete removal or addition, incurring remedial costs. Custom levellers can mitigate this, but may exceed budget constraints.
The Alapont Global solution: The Smart-Dock formwork casing

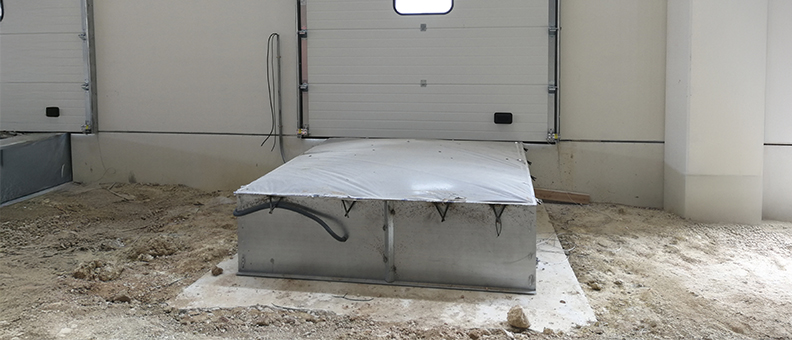

The Smart-Dock comprises a pre-fabricated casing supplied as a kit with the chosen leveller, minimising human error during slab construction. Installation entails centring the leveller relative to the door and pouring concrete, eliminating dimensional uncertainties and preventing project delays.
Smart-Dock Advantages:
- Eliminates On-Site recess construction: The integrated steel structure obviates the need for lateral and rear retaining walls.
- Clean and robust frontal finish: Precision profile finishes seamlessly integrate with the frontal wall aperture, concealing imperfections.
- Enhanced frontal impact resistance: Embedding the Smart-Dock’s enveloping steel structure during concrete pouring fortifies perimeter strength.
- Rapid and simple assembly: The protected unit arrives ready for placement on a level surface within the loading Bay Area. Only the overall leveller height and loading point separation are critical dimensions.
- Cost minimization: Costs associated with pre-frames, lateral and rear walls, frontal finishes, and dimensional discrepancies are consolidated into a single on-site delivery. This enables safe pedestrian access across the bay floor and facilitates secure installation of dock doors and other equipment.
- Superior rigidity and durability: The Smart-Dock, featuring lateral walls, shares core components with Alapont’s standard hydraulic levellers.
- Immediate operational readiness: Post-construction, protective elements are removed, and the control panel is connected to the pre-installed electrical supply. Pre-installed electrical connections via an industrial plug that joins the electrical panel with the dock leveller.
Smart-Dock Compatibility
The casing is compatible with all recessed loading bay levellers, including swing lip and telescopic lip models.
Available finishes include lacquered steel, galvanized steel, and stainless steel, matching the leveller’s construction.
For further information or assistance, contact our team.
